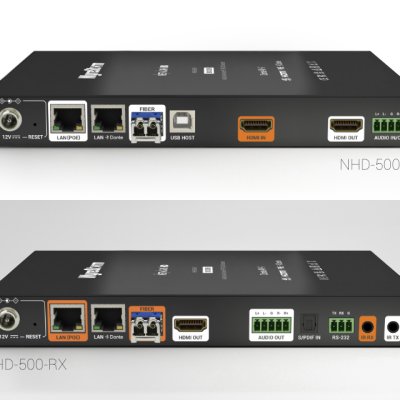

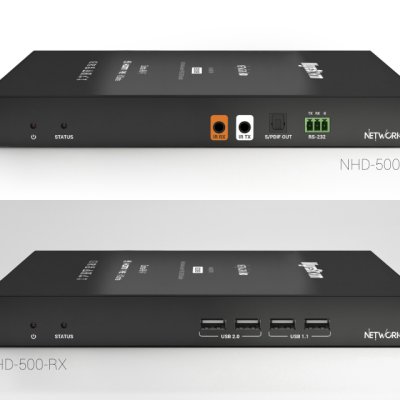

Name: NetworkHD 500 Series 4K60 4:4:4 JPEG2000 Encoder
Brand: WYRESTORM
SKU: NHD-500-TXv2
Availability: InStock

Technical Specification
Additional Features

Technical Specification

AUDIO & VIDEO

Inputs

TX:
1 x HDMI 2.0b
1 x 5-pin Balanced Audio

RX:
1 x S/PDIF (Toslink)

Outputs

TX:
1 x HDMI 2.0b
1 x 5-pin Balanced Audio
1 x S/PDIF Digital

RX:
1 x HDMI 2.0b
1 x 5-Pin Balanced Audio

Video Resolution (Max)

5120x2160p@50/60Hz 4:2:0 CVT
5120x1440p@50/60Hz 4:2:0 CVT
4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision/HDR/HLG
1920x1080p @60Hz 12bit

Audio Formats

Passthrough: 2ch PCM and up to DTS:X and Dolby Atmos
ARC: 2ch PCM and up to Dolby Digital+ and DTS 5.1
Dante/AES67: 2CH PCM

Supported Standards

DCI | RGB | USB

Maximum Pixel Clock

600Mhz

Output Video Encoding

JPEG 2000

Encoding Data Rate

Max 850Mbps

End-to-End Latency

4ms video latency (pass-through mode) | 1-2 video frames latency (scaler/VW mode)

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.2 | CEC | EDID | ARC

LAN

1x 1GbE 8-Pin RJ45
1x 1Gb SFP:
(1000Base-SX: 550m using OM3 MMF)
(1000Base-LX: 5km using SMF)
(1000Base-LX10: 10km using SMF)

1x IR TX 3.5mm TS Mono Jack | API Programmable
1x IR RX 3.5mm TRS Stereo Jack | API Programmable

RS-232

1x 3-Pin Phoenix Connector | 2-way | API Programmable

Security Protocols

AES 256 | SSH | HTTPS

USB

TX:
1 x USB 2.0 Type B

RX*:
2 x USB HID Type A
2 x USB 2.0 Type A (up to 200Mbps upstream)

POWER

Power Supply

12V DC 1A | 802.3at PoE+ Compliant

Additional Features

HDMI 2.0 ENCODING

Capable of encoding full HDMI 2.0 content. This includes 4K60 4:4:4 8bit and high dynamic range video including Dolby Vision, HDR10 & HLG up to 12bit 4:2:2 at 60Hz over a 1GbE network. NHD-500-TX v2 comes with HDMI loop out for local monitor.

ETHERNET OR FIBER

Equipped with both Ethernet and Fiber outputs, the 500 series offers flexibility for any installation. Ethernet can support transmissions up to 100m (328ft) and fiber is capable of a stunning 550m (1800ft) using OM3 MMF.
NHD-500-TX v2 & NHD-500-RX v2 brings additional Ethernet port which can be used for Dante AV-A network or for getting the local device on the network.

AUDIO RETURN CHANNEL

Audio Return Channel (ARC) via HDMI allows audio from a display to transmit over the network to a 500 series encoder for connection to a compatible AVR. ARC supports up to Dolby Digital Plus and DTS 5.1 formats. Have an older display? Take advantage of the Toslink passthrough to transmit audio in the same way.

VIDEO WALLS

Create captivating large format video walls with the ability to process up to 256 screens (16×16). Easily adjust for screen bezels to ensure the video is picture-perfect. The 500 series also allow you to create mosaic style walls with rotated screens!

SECURITY

Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 500 series in encrypted end-to-end.

ULTRA LOW-LATENCY

4ms when in passthrough mode allows content to be distributed without any perceivable delay.

NETWORKHD TOUCH

The 500s are fully compatible with the NetworkHD Touch control app. Effortlessly control matrix and video wall switching with preview streams of each encoder.
