Advanced 2 or 4 Channel Dante Amplifier
Advanced 2 or 4 Channel Dante Amplifier - Image 2

Advanced 2 or 4 Channel Dante Amplifier

$1,150.00

SKU: AMP-260-DNT

The AMP-260-DNT is a cutting-edge two or four channel network amplifier designed to cater to the advanced audiovisual needs of professional environments such as medium to large meeting rooms and university lecture halls. This robust amplifier integrates both local line-level and Dante audio inputs, ensuring flexible connectivity and superior audio distribution tailored to the acoustics of the space. With its dual power supply capability, sophisticated DSP for custom audio shaping, and intelligent IO detection for seamless paging integration, the AMP-260-DNT stands as an indispensable tool in professional AV setups.

Technical Specification

AUDIO

Inputs

1 x Line In
2 x Dante In

Outputs

1 x Line Out
2 x Low Impedance Speaker Outs
2 x Dante Out

Audio Formats

Stereo or 2CH PCM

COMMUNICATION AND CONTROL

LAN

2x 8-pin RJ-45 female | 10/100Base-T | PoE+ 802.3at

Security Protocols

CA SB-327 | TLS | HTTPS

POWER

Power Supply

24V DC 5V | 802.3at PoE+ Compliant

Max Power Consumption

120w with power adapter | 25.5w with POE+

Features

  • Supports both local line-level and Dante audio inputs.
  • Built-in audio DSP for comprehensive sound shaping.
  • Dual power supply options: DC 24V 5A or PoE+.
  • Independent volume and mute control for each channel.
  • Intelligent IO detection automatically mutes during paging.
  • Easy daisy-chaining for scalable audio system expansion.
  • Flexible control via front panel, IO, TCP/IP, and web GUI.
  • Energy-efficient design adapts power output based on source.
  • Secure web UI login controls complying with CA SB-327.
  • LED status indicators for operational monitoring.
  • Supports line-level audio loop-out for amplifier daisy-chaining.
  • Five-band EQ, up to 200ms delay, and other DSP features.
  • Versatile installation options for rack or ceiling mounting.

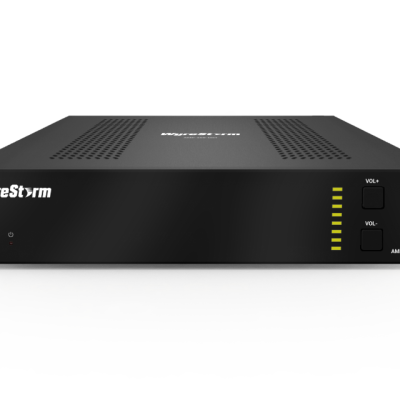

  • Front panel buttons for intuitive volume control.

Additional Features

VERSATILE AUDIO INPUTS

The AMP-260-DNT supports both local line-level and remote Dante audio inputs, allowing for a wide range of audio sources to be connected. This flexibility ensures that the amplifier can seamlessly integrate into any existing AV infrastructure, providing high-quality audio distribution across different zones.

ADVANCED DSP CONTROLS

Equipped with a comprehensive digital signal processor (DSP), this amplifier offers extensive audio customization options including gain control, a limiter, five-band EQ, and up to 200ms of delay. These features enable users to fine-tune the audio output to match the specific requirements of the environment, ensuring an optimal listening experience.

DUAL POWER SUPPLY OPTIONS

With the capability to be powered either by a DC 24V 5A power supply or via PoE+, the AMP-260-DNT offers unmatched operational flexibility. This dual power supply feature ensures that the amplifier can be easily installed and powered in a variety of settings, making it a versatile choice for different professional AV applications.

NTUITIVE USER INTERFACE AND SECURITY

The amplifier is designed with user convenience in mind, featuring front panel volume controls and LED status indicators for easy operation. Moreover, it adheres to CA SB-327 compliance for secure web UI login controls, ensuring that system settings are protected and can be safely managed either locally or remotely.
