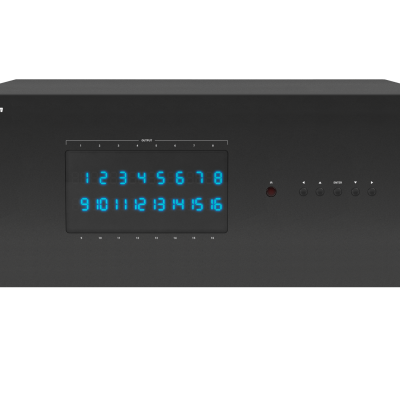

Name: Advanced 16×16 Seamless Scaling Matrix Chassis
Brand: WYRESTORM
SKU: MX-1616-SCL
Availability: InStock

Technical Specification
Additional Features

Technical Specification

AUDIO & VIDEO

Inputs

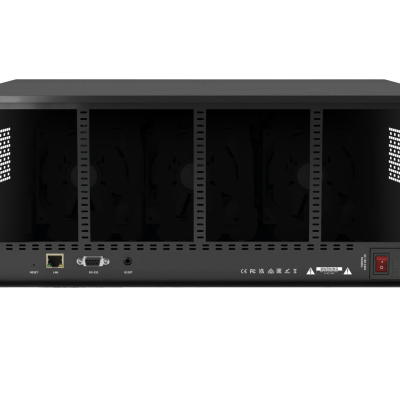

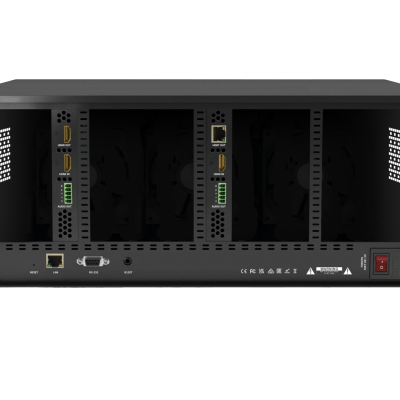

Dependent on Cards Implemented:
16 Cards:

TX-SCL-HDBT
1x HDMI IN

TX-SCL-HDMI
1x HDMI IN

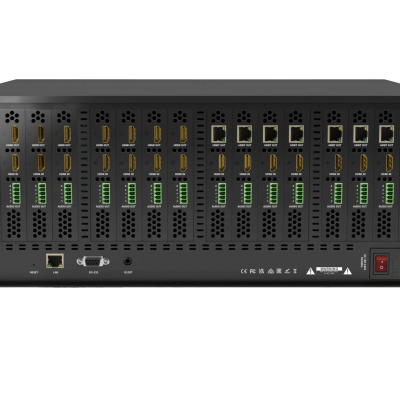

Outputs

TX-SCL-HDBT
1x HDBT Out (Supports 15W POH power supply)
1x 5 Pin Balanced Audio Output

TX-SCL-HDMI
1x HDMI Out
1x 5 Pin Balanced Audio Output

Output Video Encoding

HDBaseT, Uncompressed HDMI

Encoding Data Rate

18Gbps

Audio Formats

2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz 16bit
3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
3840x2160p @50Hz 10bit 4:2:2 HLG
4096x2160p @60Hz 8bit 4:4:4
5120×2160 @30Hz

Max Pixel Clock

600MHz

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.2 | EDID | CEC

HDBaseT

RS-232

1x RS-232: DB9 | Matrix Control
Routable RS-232 Device Control | Telnet commands supported

Ethernet

1x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control and Ethernet

POWER

Local Power Supply Input

4-pin Phoenix

ENVIRONMENTAL

Operating Temperature

0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing

Storage Temperature

-20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

DIMENSIONS & WEIGHT

Rack Units/Wall Box

Height

7in

Width

19in

Depth

TBD

Weight

TBD

REGULATORY

Supported Standards

DCI (4096×2160) | RGB | HDR | HDR10 | Dolby Vision | HLG | BT.2020 | HDBT

Features

Features integrated 4K60 scaler on each HDMI output for versatile display compatibility.
Enables fast, seamless switching across all inputs and outputs without a black screen.
Supports both HDMI and HDBT for long distance transmission.
Includes balanced Audio De-embed of all inputs.
Independent Audio Switching
RS232 Routing

Additional Features

4K60Hz SEAMLESS SWITCHING

Seamless fast switching up to 4K60 across all video inputs and outputs with less than 50ms delay. Provides a smooth, instantaneous transition between video sources without any noticeable lag or interruption. Enhancing the viewer experience in professional and entertainment settings, ensuring
high-quality presentations and displays without disruptions.

ADVANCED VIDEO PROCESSING

Features like automatic video input and output detection, and built-in scalers on each output, enable the matrix to deliver high-quality video tailored to the resolution of each connected display, ensuring the best possible image quality across all screens.

INDEPENDENT AUDIO SWITCHING

With support for de-embedded audio from HDMI inputs to balanced output ports, this feature enables precise audio routing completely independent of video signals. This flexibility allows for the creation of customized audio experiences tailored to the unique needs of your space.
