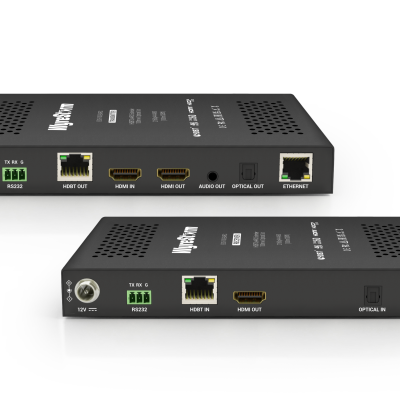

100m 4K 60 4:4:4 HDBaseT 3.0 Extender with eARC
SKU: EX3-100-EARC
Extend 18Gbps A/V signals up to 100 meters over Cat6a with the EX3-100-EARC. This extender uses HDBaseT 3.0 technology, to send 4K HDR and Dolby Vision content at 60Hz. Compatible with eARC, you can transmit audio signals such as Dolby TrueHD/Atmos and DTS-HD MA 7.1 signals from a smart TV back to an eARC enabled AVR or soundbar. Flexible control passthrough options including IR, RS-232 and LAN allow you control a display and get devices connected over long distances.
AUDIO AND VIDEO
Inputs

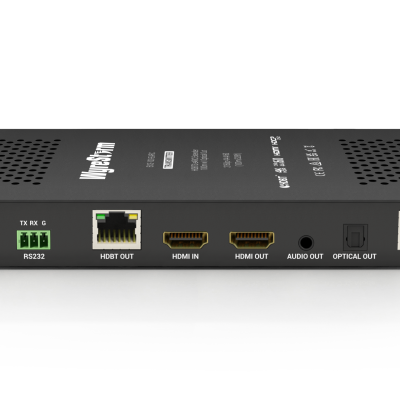

Transmitter:
1x HDMI

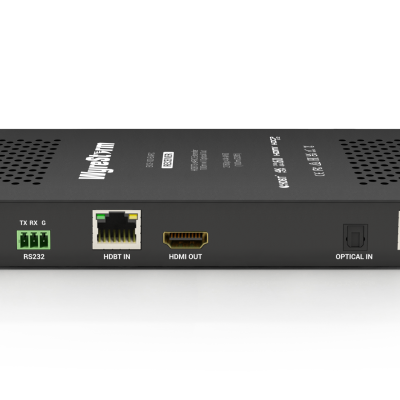

Receiver:
1x HDBaseT IN, 1x Optical IN
Outputs
Transmitter:
1x HDBaseT OUT, 1x HDMI Loop Out, 1x Optical Out
Receiver:
1x HDMI
Video Resolutions (Max)
Video Resolutions
1920x1080p @ 60Hz
3840×2160 @60Hz 4:4:4 12bit (HDR/DV)
5120×2160 @30Hz
5120×2160 @60Hz 4:2:0
Output Video Encoding
Encoding Data Rate: 10.2Gbps
End to End Latency: 10μs (microseconds)
Ethernet
Ethernet Pass-through of up to 1Gb
Audio Formats
HDMI In: 2ch Analog/PCM
Multichannel: LPCM up to DTS-X , DTS-HD Master Audio, Dolby Atmos
eARC: 2ch Analog/PCM
Multichannel: LPCM up to DTS-X and Dolby Atmos
Supported Standards
DCI | RGB | HDR10 | Dolby Vision | HLG | BT.2020 | BT.2100
Maximum Pixel Clock
600MHz
COMMUNICATION & CONTROL
HDMI
HDMI | HDCP 2.2 | EDID | CEC Pass-through
HDBaseT
HDMI | HDCP 2.2 | EDID | RS-232 Pass-through | IR Pass-Through| 2- WAY PoH | CEC Pass-Through
IR
1x IR RX: 3.5mm (1/8in) TRS Stereo
1x IR TX: 3.5mm (1/8in) TS Mono (Transmitter & Receiver)
RS-232
1x RS-232: 3-pin Phoenix (Transmitter and Receiver)
POWER
Power Supply
12V DC ?A
ENVIRONMENTAL
Operating Temperature
32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
Storage Temperature
-4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing
DIMENSIONS & WEIGHT
Length x Width x Height
190mm x 115mm x 23mm
REGULATORY
Safety and Emission CE | FCC | RoHS | RCM | EAC | UKCA
